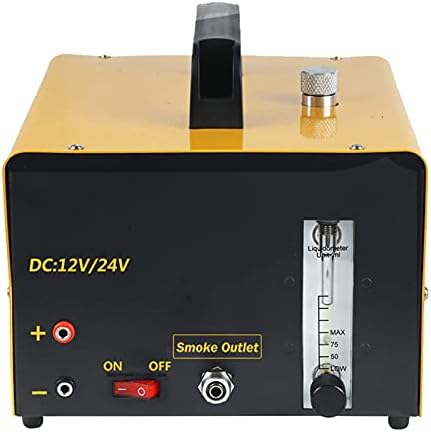

Operation 1.Open the engine cover, and hang the detector in the cover. 2.Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle. Please secure the other side with a rubber stopple. 3.Secure this side with proper taper stopple/pipe, and connect it with smoke output tube. 4.Connect detector with DC12V battery: red with positive, black with negative. Do not connect in a contrary way. 5.Turn on the power switch, and detector starts to work. 6.Adjust the flow gauge. Control the input smoke value and pressure to make sure the pipe system can afford the pressure. 7.In about 3 minutes, the pipe will be filled with smoke. 8.Observe the floating ball in flow gauge. If the floating ball stays still in the bottom, the pipe is sealed with. If the floating ball is arising or bouncing, the pipe is leaking. 9.Position the leak points by floating ball. If the bounce arises highly, the leakage is serious. 10.Check the leak points. Please use head lamp if necessary. 11.After leak detection, please connect well the wires and pipe. Do not run the detector over 5 minutes. It needs interval rest. The detector has protector. If it exceeds working limit, it will power off automatically. In this condition, please operate it later. With longtime high temperature, the smoke and oil will oxidize and deteriorate. It will infect the service life of smoke generated part, so please change smoke and oil regularly. 1.Before filling new oil, please pour out the remaining oil in the detector. 2.When the smoke output has water drops, please replace with new oil. 3.Liquid paraffin and baby oil are OK. Please fill new oil with equipped oil. Package Includes 1* Main Unit 1* Pipeline Plugs 1* Smoke Pipe 1* Box 1* Scaled Oil Bottle 1* Power Cord 1* Cone Inlet Adapter 1* Adapte
